If you connect 2 Tiproboards and have one controller in one of the boards,
it is necessary to put the controller inside the board on the left side?
I have problems when I try to put the controller in the right keyboard.
When I put the controller in the left board everything is as expected.
Maybe it is happenstance, but iirc it is the second time this is happen to me.
The Tiproman or someone else know something about it?
Connecting Tipro Boards - Controller Position
-
CeeSA
- Location: Westerwald, Germany
- Main keyboard: Deck 82 modded
- Main mouse: MM711
- Favorite switch: Cherry MX Blue
- DT Pro Member: 0016
- Contact:
-
kbdfr
- The Tiproman
- Location: Berlin, Germany
- Main keyboard: Tipro MID-QM-128A + two Tipro matrix modules
- Main mouse: Contour Rollermouse Pro
- Favorite switch: Cherry black
- DT Pro Member: 0010
My keyboard consists of 3 units, and it is the middle one which is connected to the computer. No problems there.
-
kbdfr
- The Tiproman
- Location: Berlin, Germany
- Main keyboard: Tipro MID-QM-128A + two Tipro matrix modules
- Main mouse: Contour Rollermouse Pro
- Favorite switch: Cherry black
- DT Pro Member: 0010
On their PCBs all units have 2 connectors (one on either side) for their internal connection ("Tipro Bus). Obviously the controller/program identifies what is connected where.Icarium wrote:How would the board know where left and right is?

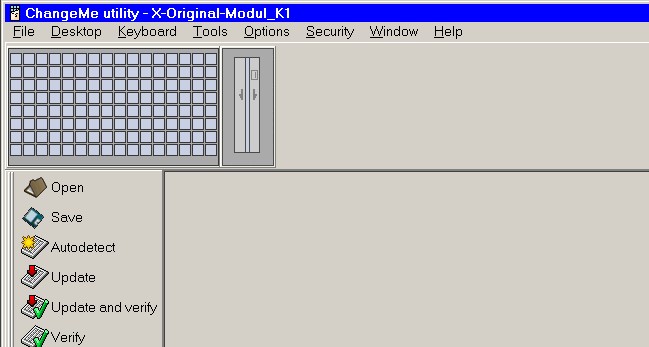

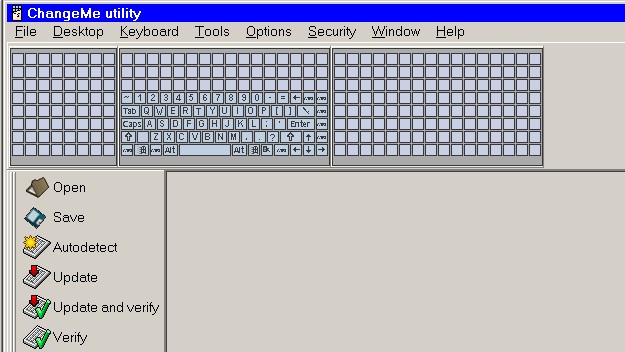

As a matter of fact, every time you open ChangeMe, it scans your keyboard and displays its actual physical configuration, for example:
- ChangeMe-2.jpg (42.41 KiB) Viewed 1368 times
- ChangeMe-1.jpg (59.59 KiB) Viewed 1368 times
