Nano board

[jpatters]

Thanks! I'll take a look at that.

[ne0phyte]

A smaller layout would be all the more intense, in fact. Mine is 15x5 units. I see you're going for 11x5. Ne0phyte made an impressive 12x4:
http://deskthority.net/workshop-f7/thkb ... t6455.html

Urgh don't remind me of that. I lost the plate and case files when my oldest hard drive died.
I still have to re-create it and build a complete keyboard

Personally I wouldn't waste the space in the top row.
If the case is bigger anyway why not at least use the space by adding some function/media/launch keys.

[jpatters]

Personally I wouldn't waste the space in the top row.
If the case is bigger anyway why not at least use the space by adding some function/media/launch keys.

The top row will only be there if I build a version with a Raspberry Pi built in (hence, "power"). I will probably order a first prototype plate without that row, so I want to design my layers so that no other keys are really needed.

That said, here are a few more layouts that are kicking around in my head:

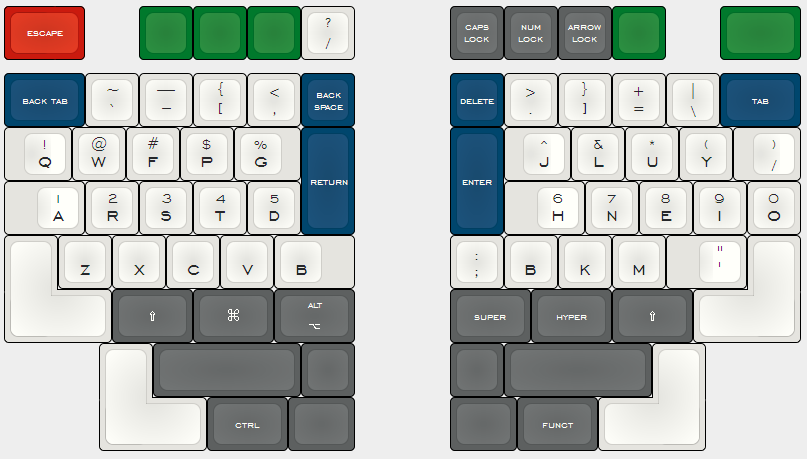

NANO ERGO A.PNG (89.1 KiB) Viewed 927 times

NANO ERGO B.PNG (63.25 KiB) Viewed 927 times
