Cherry SAT: Czech dyesub keycaps - the third take - English version

hansichen · 13 Nov 2018, 22:41

Most people in this hobby are probably familiar with original Cherry dyesub keycaps and many people know the legendary Czech sets with blue sublegends, especially cause of scottc's find of 10 nib boards years ago. When comparing these sets we can notice several versions of the set:

The standard Cherry one found by scottc:

And the "peacock" SAT version:

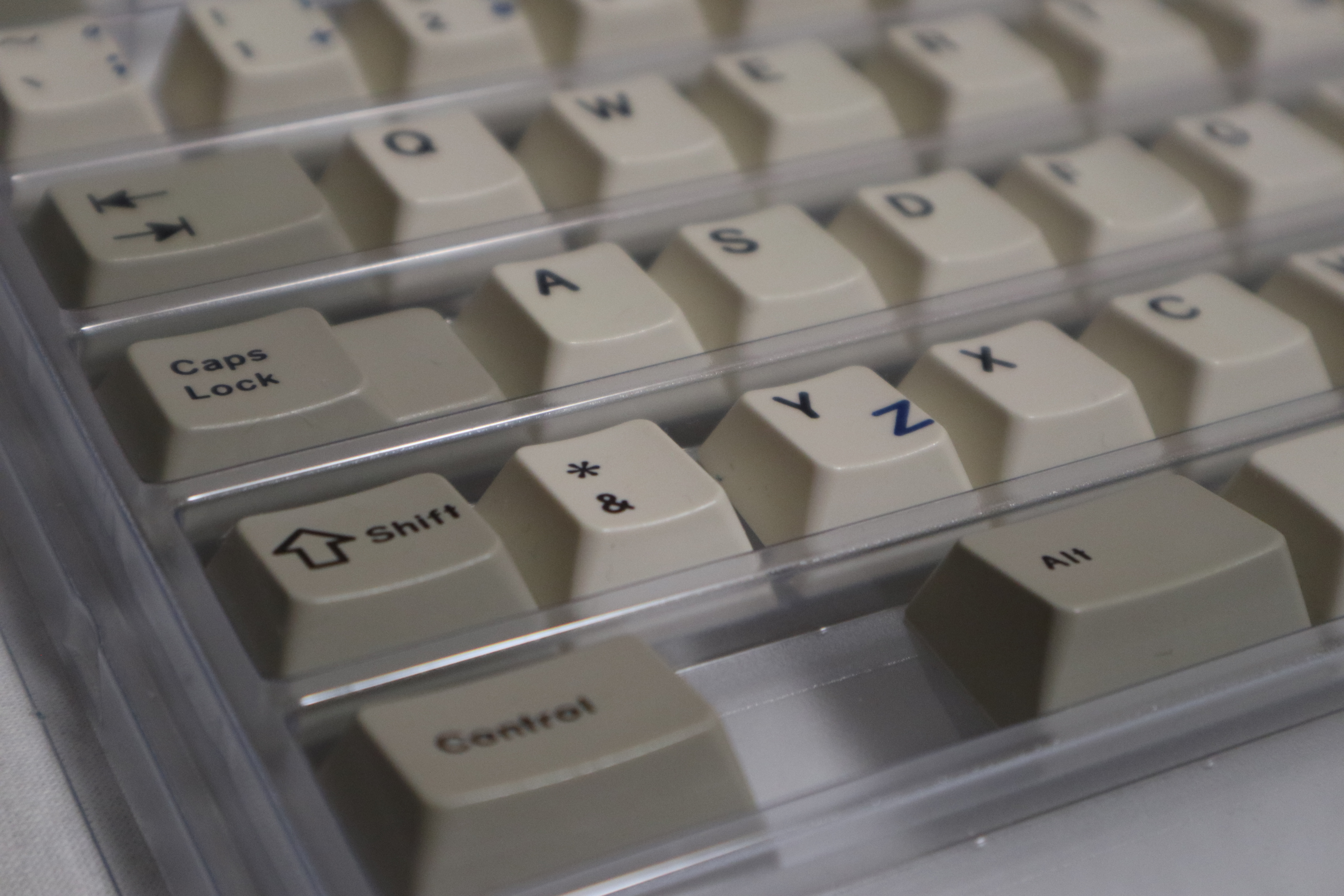

These two sets have some differences in their layout but in general they feature standard European icon modifier keys and Czech top printing with blue English front printing. Recently I was able to obtain a third version of these caps: a version with English as first language and blue Czech printings (placed on the top and not the front). Also this set features some unique ISO text mods (which normally only exist on ANSI dyesub sets), especially the (ugly) 1,25u Shift key which doesn't exist in any other European dyesub set as far as I know.

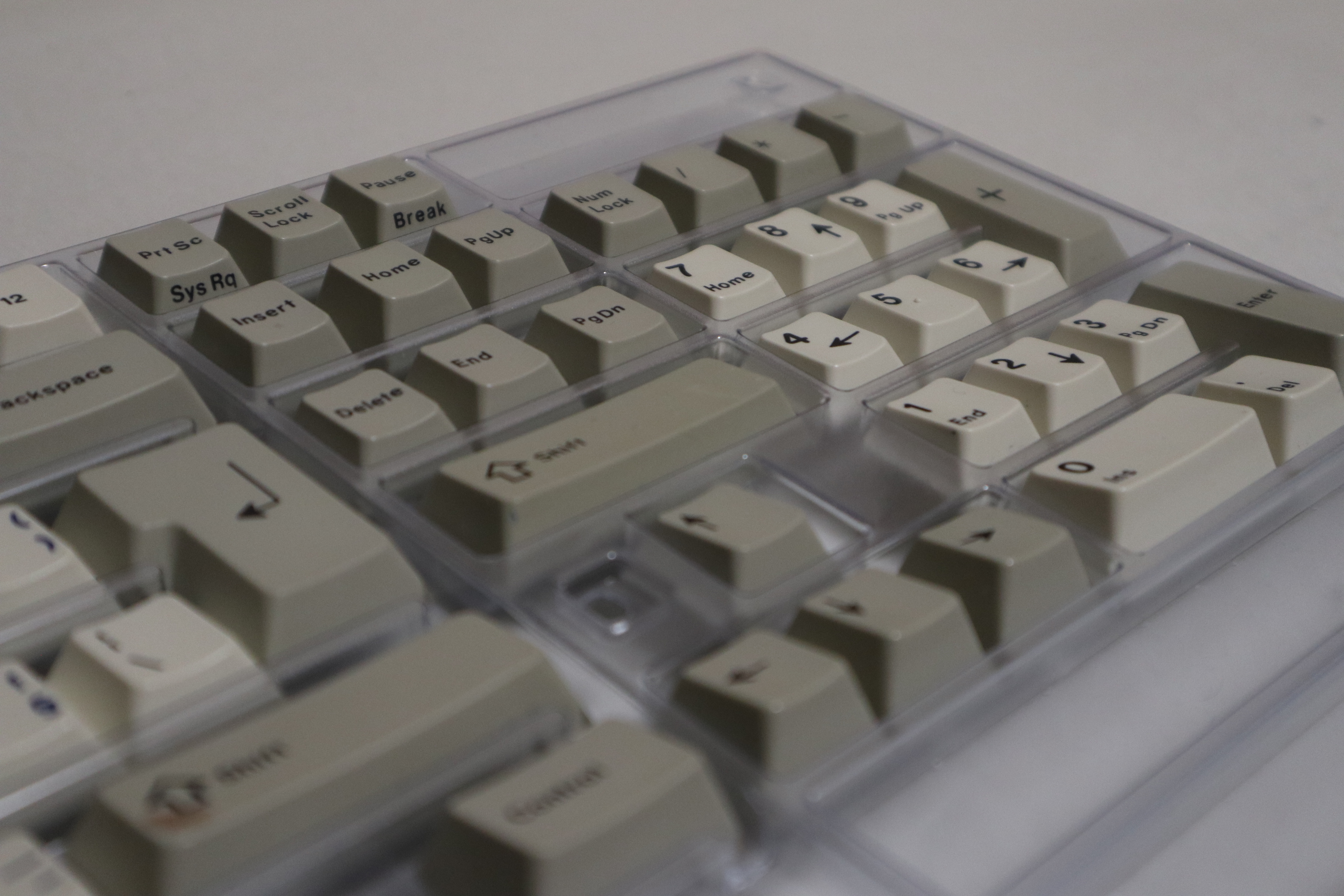

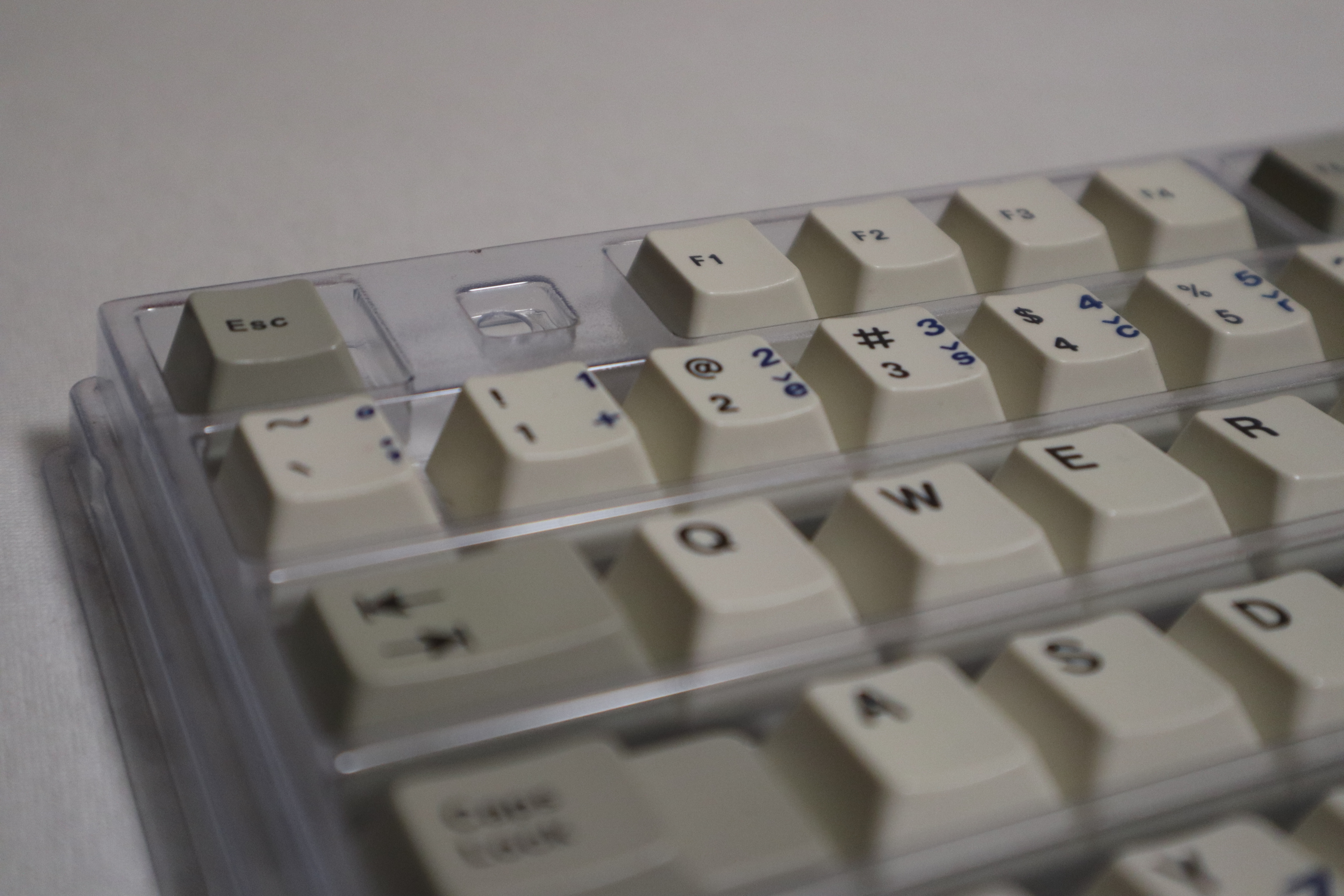

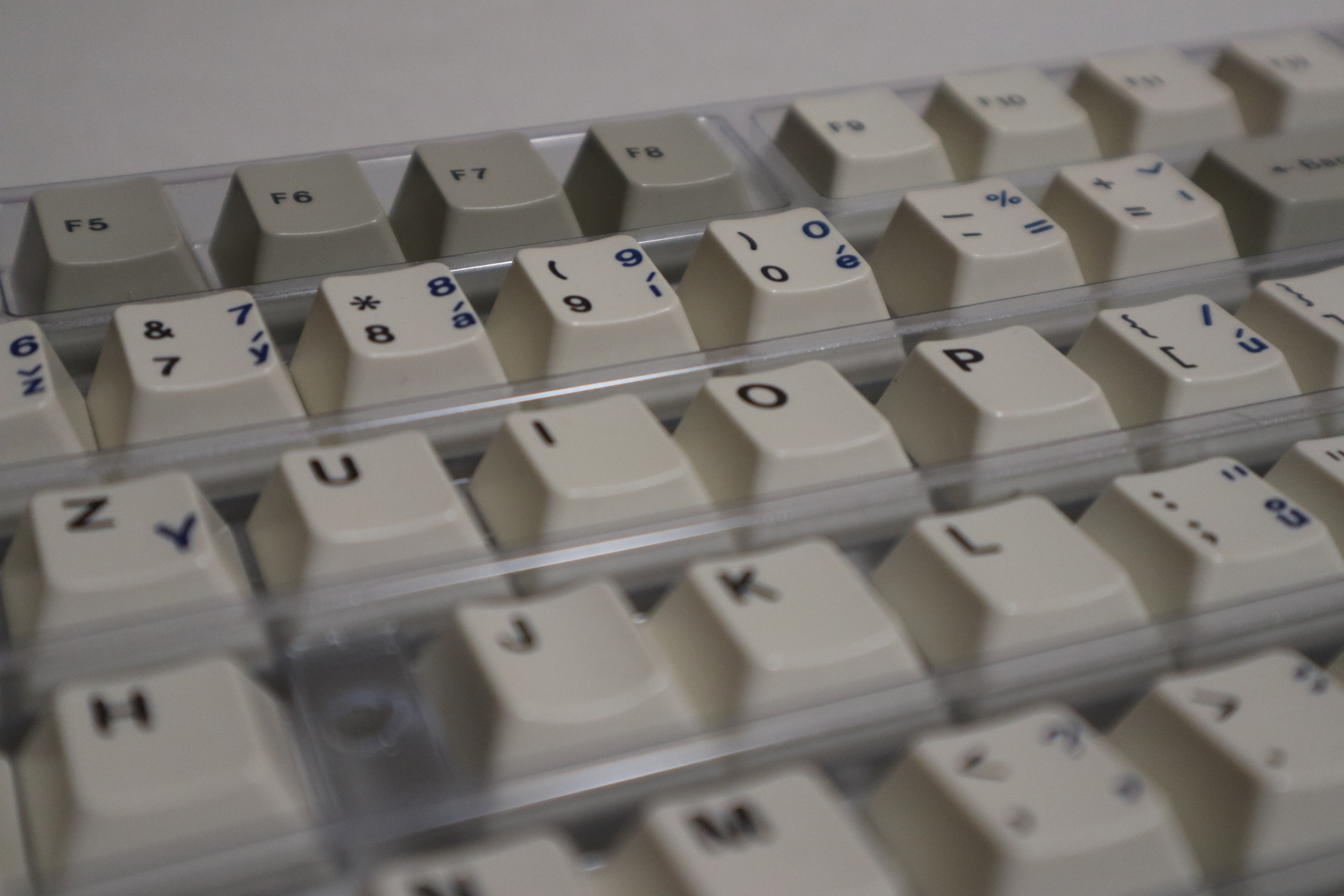

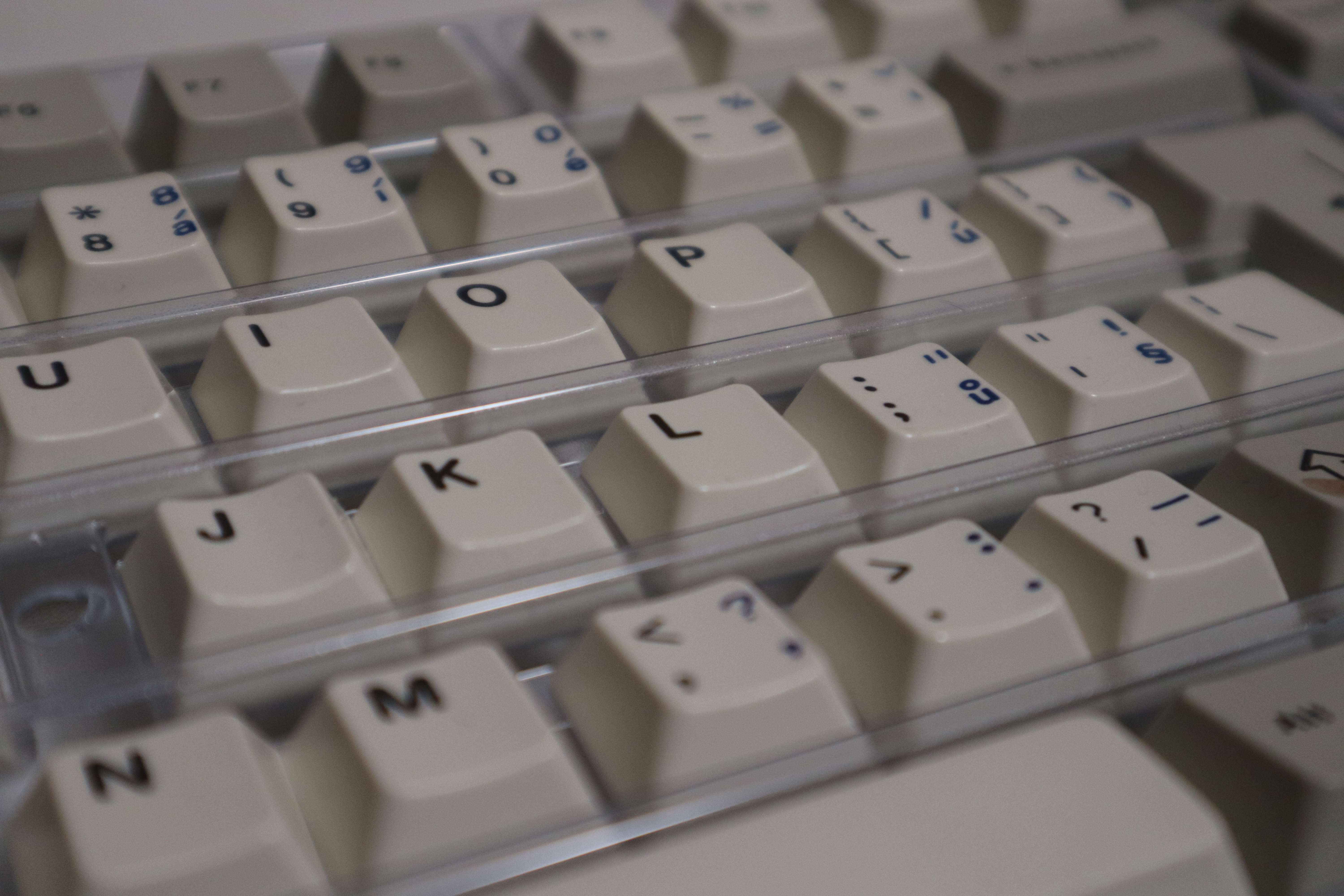

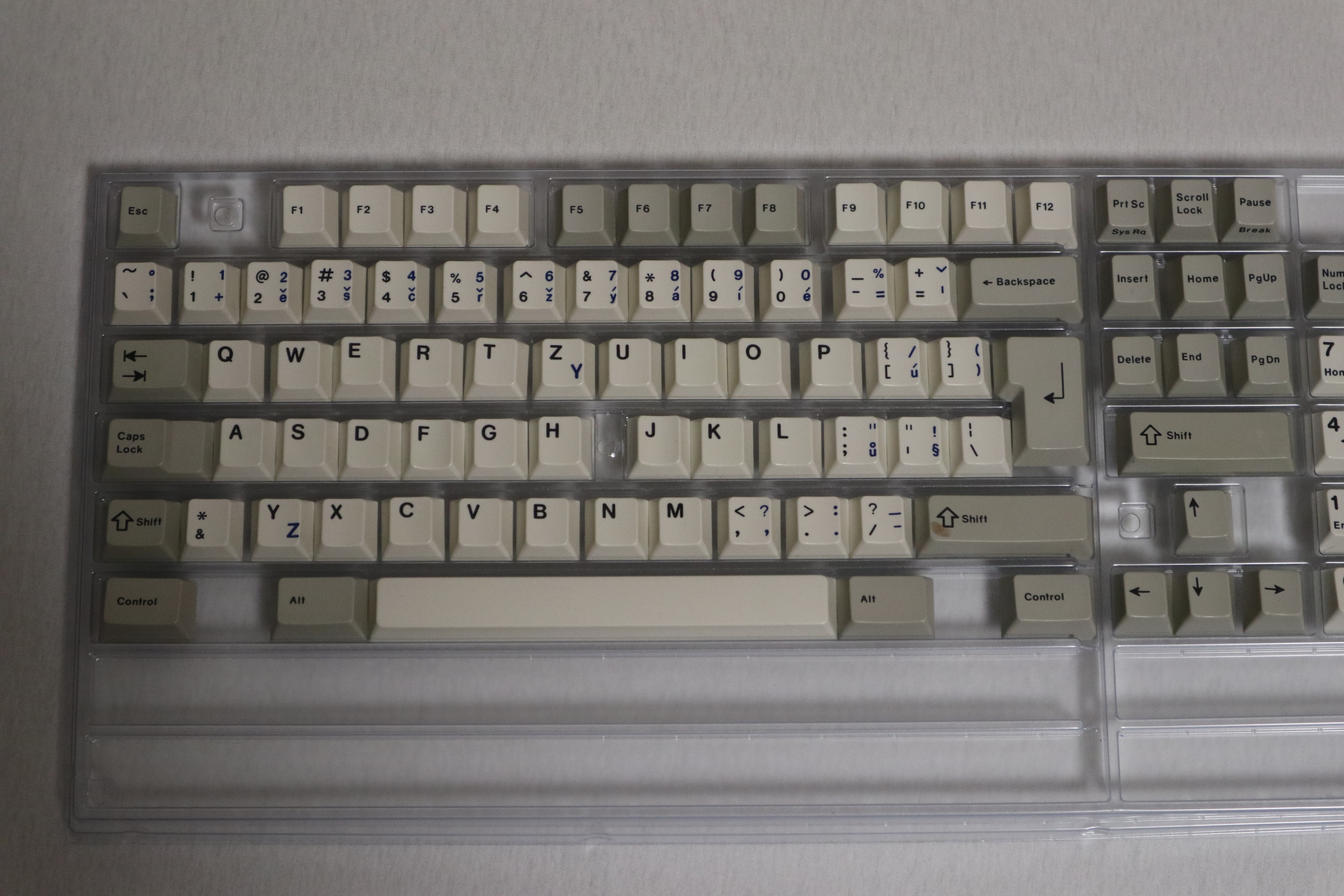

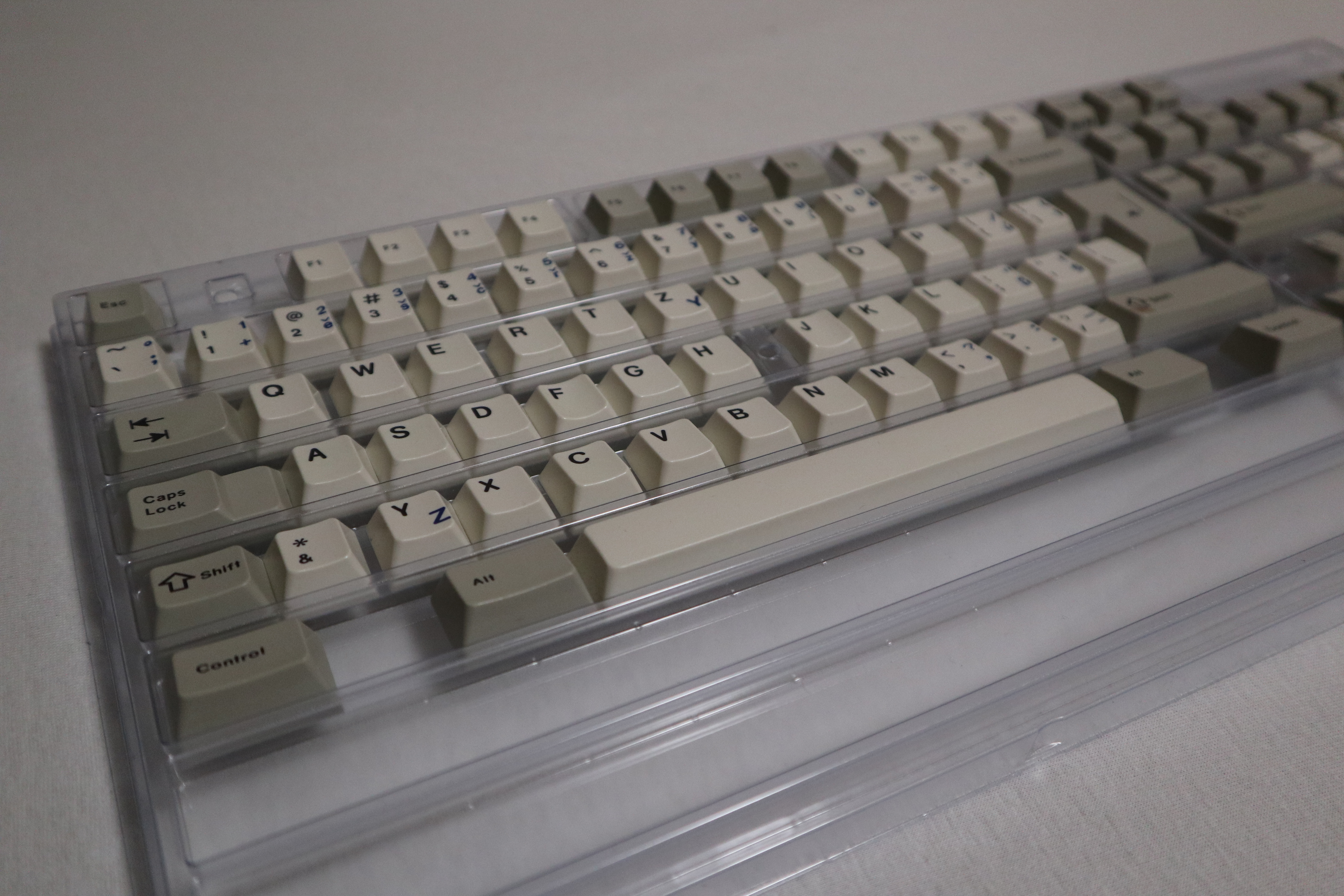

Here are some pictures of the set (sorry for the photatoes but it's winter with really bad lightning

):

: IMG_0172.JPG (8.45 MiB) Viewed 3722 times

: IMG_0173.JPG (7.35 MiB) Viewed 3722 times

: IMG_0174.JPG (7.64 MiB) Viewed 3722 times

: IMG_0175.JPG (7.3 MiB) Viewed 3722 times

: IMG_0176.JPG (7.59 MiB) Viewed 3722 times

: IMG_0177.JPG (7.63 MiB) Viewed 3722 times

: IMG_0178.JPG (8.4 MiB) Viewed 3722 times

scottc · 14 Nov 2018, 00:20

So cool. Interesting to see the differences side-by-side. This set is such a weird mixture of English vs. Czech primary legends with the others as secondary.

ramnes · 14 Nov 2018, 11:43

Very nice! Do you happen to know the part number?

hansichen · 14 Nov 2018, 12:22

Sadly not. The seller offered only the caps without the actual keyboard so I can't check the label.

davkol · 17 Nov 2018, 19:56

photekq · 28 Dec 2018, 01:58

Nice find. They could be from this board (thanks mm87 if you're still here) :

Myoth · 28 Dec 2018, 02:06

photekq comes out of his cave and pinpoints the right keyboard these came from, what a legend !!

photekq · 28 Dec 2018, 02:15

Myoth wrote: photekq comes out of his cave

hey, it's a shack not a cave!

hansichen · 28 Dec 2018, 11:12

Thanks for sharing the pictures photeq. I knew the top picture of the board, good to see the label as well.
